- Size: 7300*950*1860mm
- Place of Origin: China
- Brand Name: Rundong
- Model Number: DLZ-420
- Weight: 1800.000 kg
Characteristic
1. Uses the original high sensitivity three color standard photoelectric sensor, accurate fixing the color design of membrane, reduce packaging defects, improve the grade of products.
2. Easy to mould replacement, multi-usage.
3. Can according to customers' product packaging requirements, equipped with automatic code system. On the basis of the vacuum can be balanced into nitrogen gas or gas for packaging.
4. Equipped with world-class original German vacuum pump, vacuum degree is high, the quality is stable.
5. Uses the German import breaststroke chain to ensure that film clip clamping force, transmission precision, long service life.
6. With marginal waste recycling system, maintain environmental health.
7. The use of advancedindependent transverse, longitudinal cutting system, change the easy to operate.
8. Built-in automatic falut alarm, to prompt the cause of the problem in time and stop running automatically, make the equipment more humanization.
9. Independent upgrade system, speed, strong rigidity, no failure rate.
10. Go film using special operation module, high speed, stable operation, positioning precision.
11. Equipped with automatic safety device, remove the protective cover device will automatically stop running, ensure the safety of the operator.

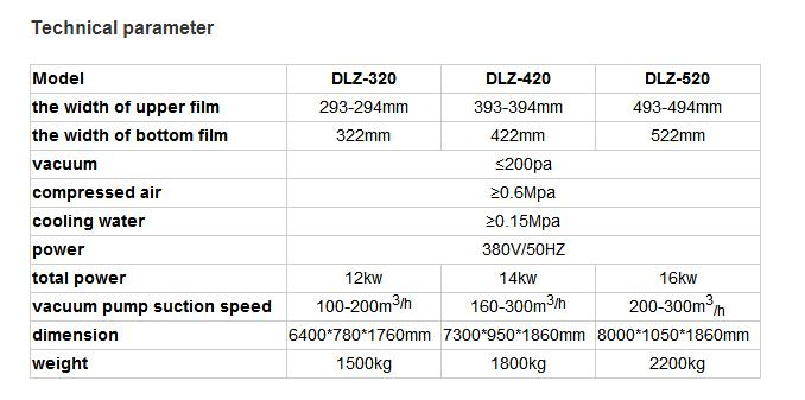

Technical parameter
Model | DLZ-320 | DLZ-420 | DLZ-520 |
the width of upper film | 293-294mm | 393-394mm | 493-494mm |
the width of bottom film | 322mm | 422mm | 522mm |
vacuum | ≤200pa | ||
compressed air | ≥0.6Mpa | ||
cooling water | ≥0.15Mpa | ||
power | 380V/50HZ | ||
total power | 12kw | 14kw | 16kw |
vacuum pump suction speed | 100-200m3/h | 160-300m3/h | 200-300m3 /h |
dimension | 6400*780*1760mm | 7300*950*1860mm | 8000*1050*1860mm |
weight | 1500kg | 1800kg | 2200kg |
